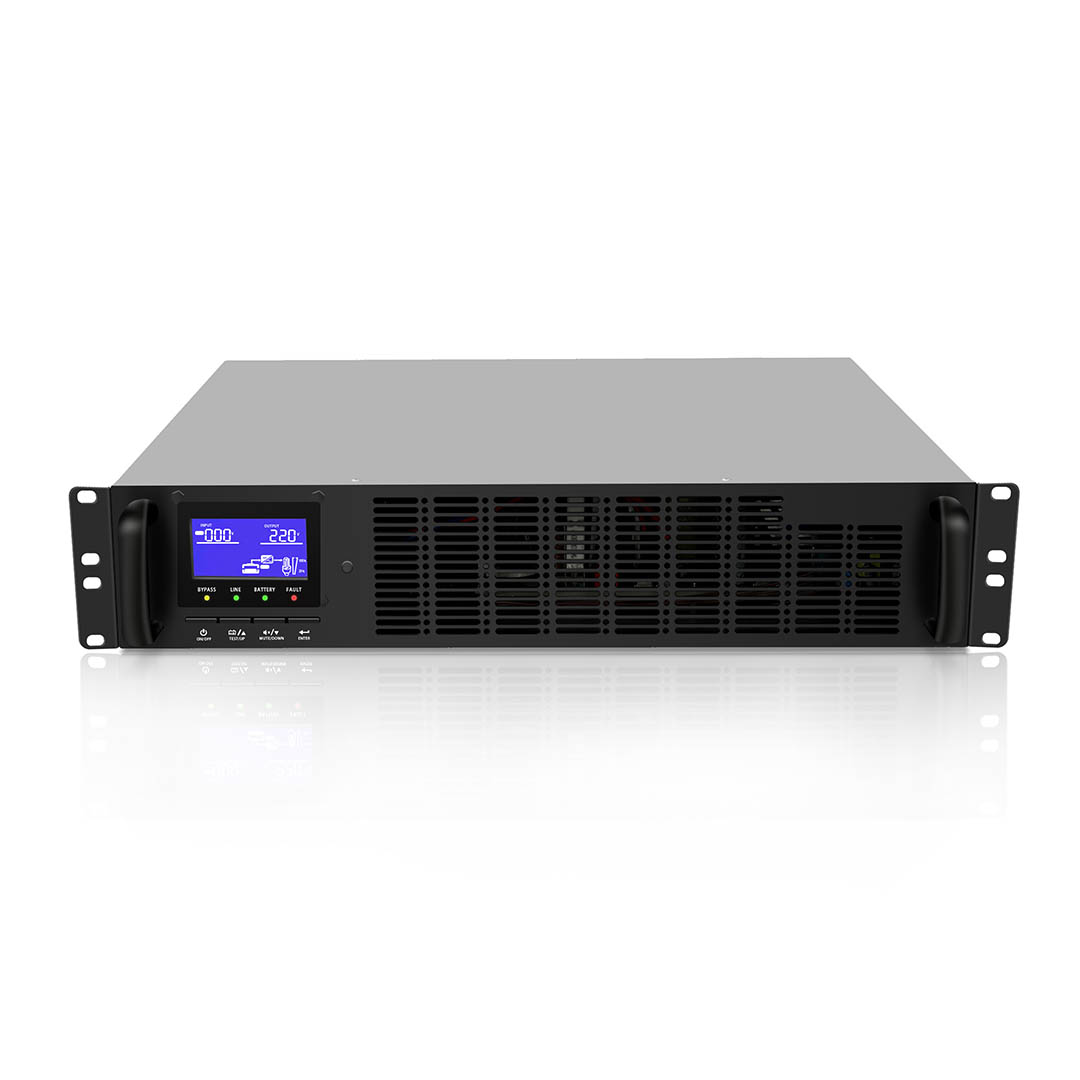

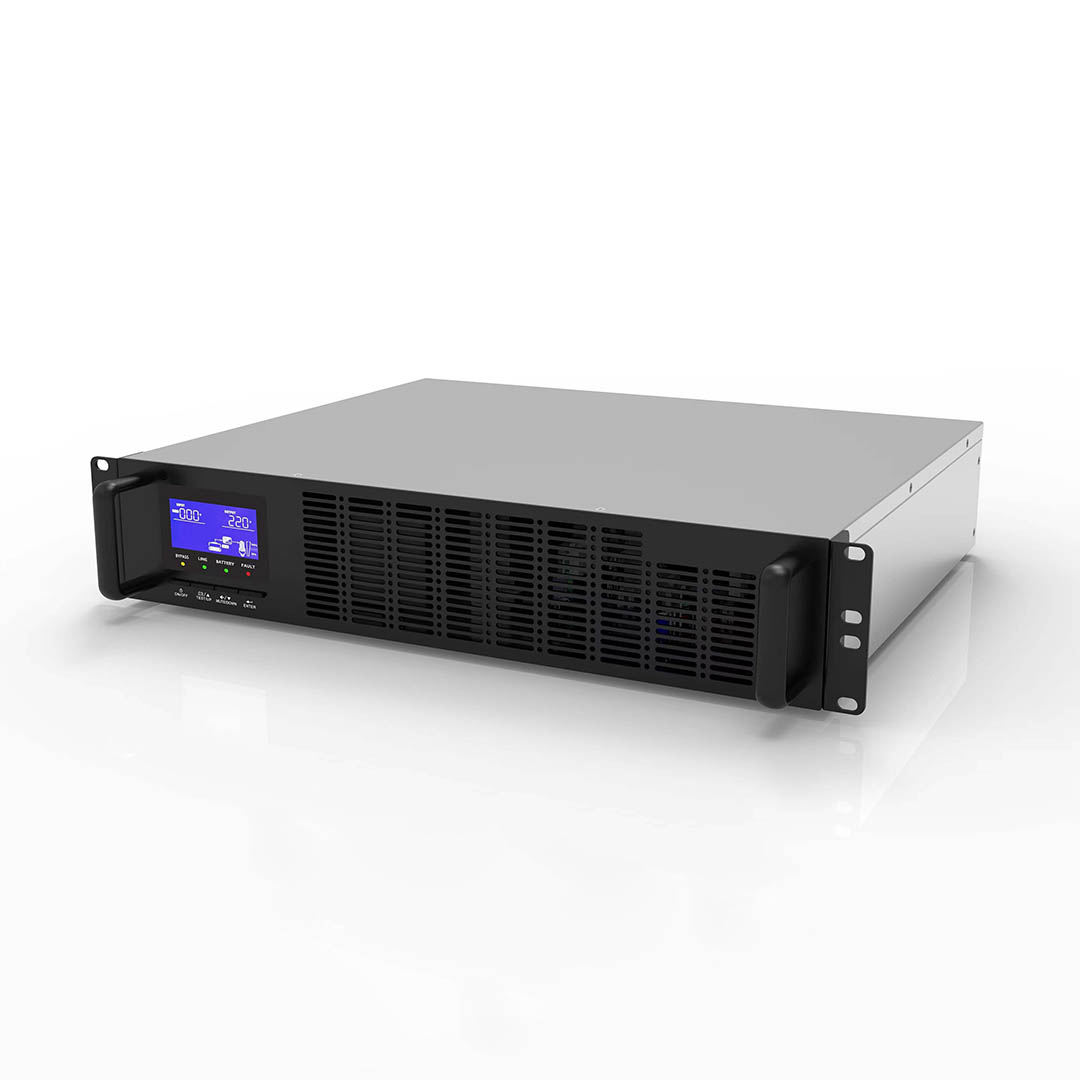

On-line UPS PX1K-3KRL-Online UPS-Fenice Power Co., Ltd.

Overview

Quick Details

Warranty:1year,12months

Place of Origin:shenzhen, china

Brand Name:OEM

Model Number:PX1K-3KRL

Phase:Single Phase

Protection:Short Circuit

Weight:8.9KGS

Type:On-line

Application:all appliances less than 800w

Product name:Online ups

Capacity:1000va 800w

Battery Type:lead-acid battery

Waveform:Pure Sine Wave On-line

Transfer time:0

Color:Black

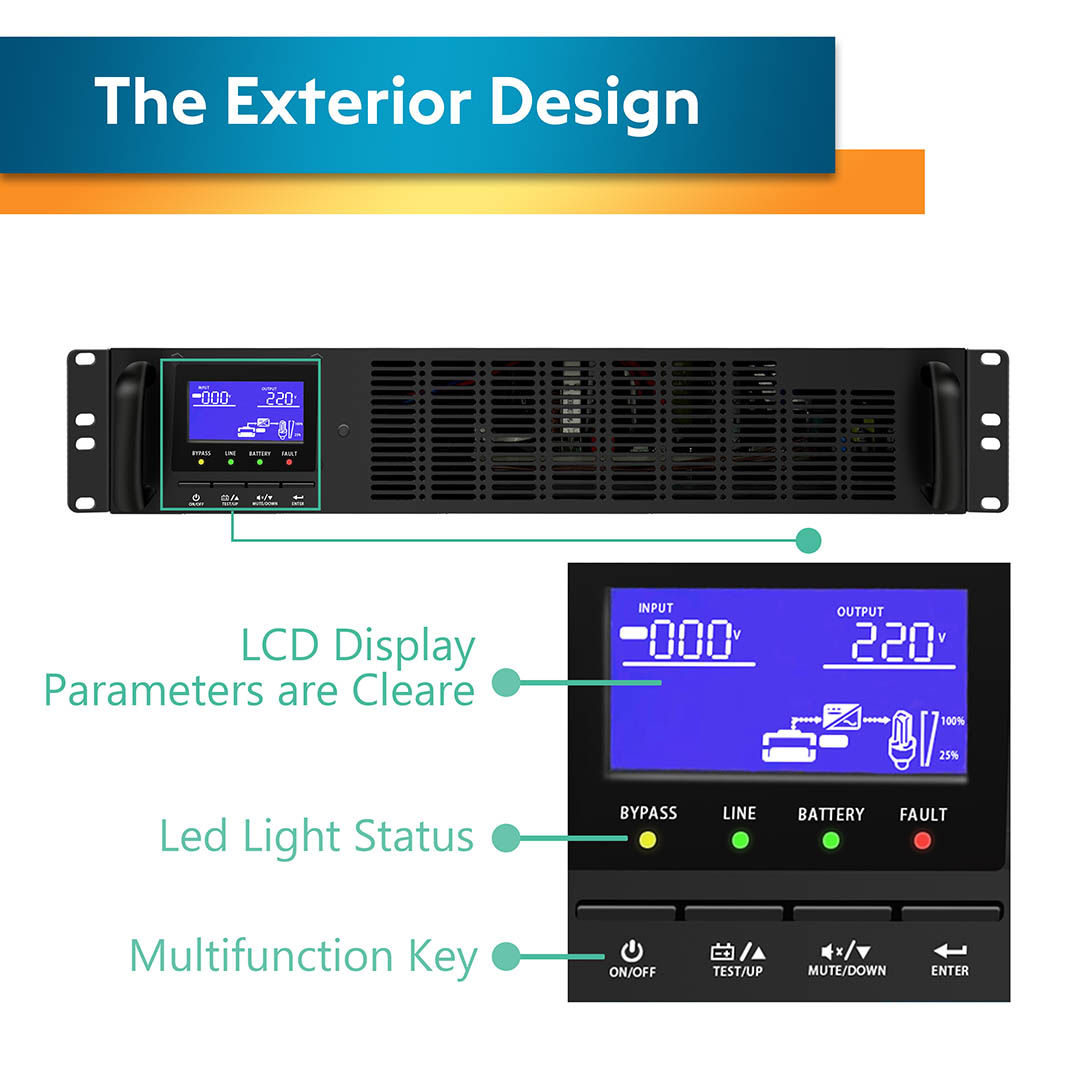

Display:LCD

Keywords:Rack type

Power factor:0.8

Supply Ability

Supply Ability 60000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details

1pcs in one carton

UPS with 7ah 2pcs

NET weight 11KG

Gross weight 12KGS

UPS with 9ah 2pcs about 12KGS

Gross weight 13KGS

Carton Size 530*450*185mm

Carton CBM 0.044CBM

Port shenzhen

Picture Example: package-img

Lead Time:

Quantity(pieces)	1 - 500	501 - 1000	>1000
Est. Time(days)	30	32	To be negotiated

Main features

♦ Double conversion online UPS

♦ High performance DSP based full digital controlled,pure sine wave output

♦ Having frequency converter operating mode

♦ Wide input voltage range,work well with different power quality

♦ Compatible with most generators set

♦ Embedded anti-input power factor corrector,avoid reactive power loss,saving power for user

♦ Having CEO mode. Enable best balance between energy saving and power protection

♦ Good loading adaptability,work well with laser printer,Ultrasonic cleaner

♦ Make with strong glass fiber base double side PCB(FR4),avoid dry solder,strong anti-vibration / anti-humidity / anti-dust capability

♦ Small profile,save installation space for user

♦ Accept deep customer-oriented,perfect match customer application requirement

♦ Attractive performance-cost ratio

Product Description

Specifications

Model item		1K(R)	1K(R)L	2K (R)	2K (R)L	3K (R)	3K(R)L	6K	6K(R)L	10K	10K(R)L
Rated power		1000VA/900W		2000VA/1800W		3000VA/2700W		6kVA/5.4kW		10kVA/9kW
AC Input	Input system	Single phase (L/N+PE)
	Nominal voltage	HV: 208/220/230/240Vac LV:100/110/120/127Vac
	Frequency	50/60Hz
	Voltage range	HV: 90~300VAC±5VAC LV: 60-145Vac±3VAC
	Frequency range	(40~70)±0.5Hz
	Input power factor	>0.99
	Bypass Voltage Range	HV: 115~285VAC×(1±3%) LV: 80~140VAC×(1±3%)
Battery Input	Nominal Voltage	24V	36V	48V	72V	72V	96V	192V	192V	192V/240V
	Battery Capacity & Quantity	12V/9AH x 2pcs	External	12V/9AH x 4pcs	External	12V/9AH x 6pcs	External	12V/9AH x 16pcs	External	12V/9AH x16/20pcs	External
	Backup Time	Half loaded≥8minutes, Full loaded ≥3minutes(standard)						Half loaded≥6minutes, Full loaded ≥3minutes(standard)
	Battery charger time	Charger to 90% battery capacity in 5 hours(standard) Dependent on the capacity of external batteries (long backup time)
AC Output	Output wiring system	Single phase (L/N+PE)
	Inverter Mode Output voltage	HV:208/220/230/240Vac±2% LV:100/110/120/127Vac±2%
	Waveform	Sine Wave
	Harmonic Distortion	THD<2% (linear load) THD<7% (nonlinear load)
	Output frequency	50/60±4Hz (Sync mode) 50/60Hz±1% (Fix Freq. mode)
	Overload capability	105～125%≥ 60s,126～150%≥30s The recover point is 70%
	Transfer time	Battery <-> Line Mode :0ms
Efficiency	Line Mode	HV:86% LV:86%		HV:88% LV:86%		HV:89% LV:87%		HV:92% LV:88%		HV:93% LV:89%
	Battery Mode	HV&LV:85%		HV&LV:86%		HV&LV:87%
Communications		RS232 RS485(optional), Dry contact(optional), Network Card(Option)
Alarm Function		AC/DC input under abnormal, overload condition and Inverter problems
Protection Function		AC input or output above or below the range of voltage, overload, over temperature and short circuit protection
Noise		<50dB						<55dB
