Chapter 7 Specifications

7.1 Single phase input Specification

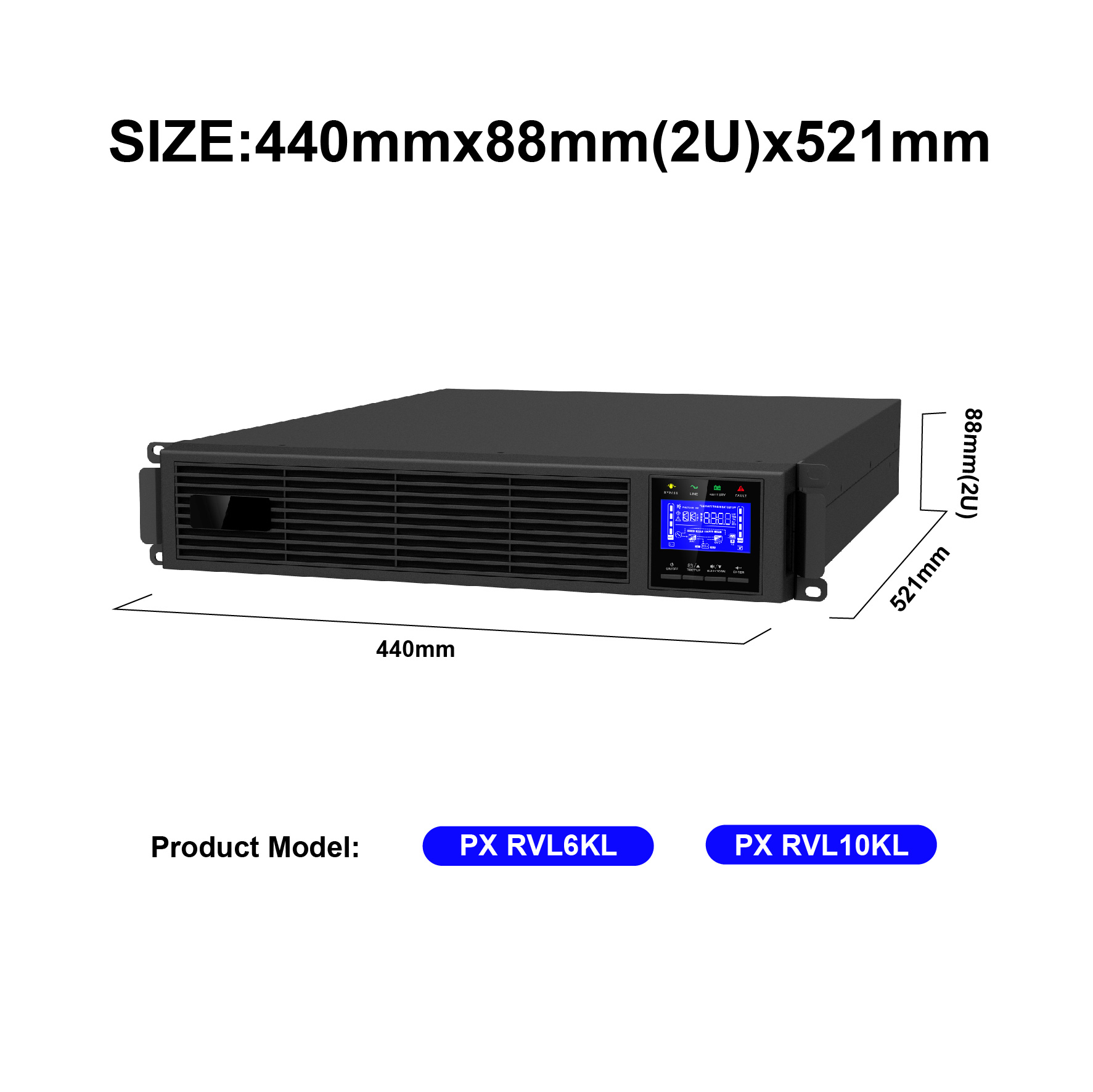

MODEL		PX RVL6KL	PX RVL10KL
Capacity	VA/W	6kVA/6KW	10kVA/10KW
Topology		Double Conversion Online UPS
Phase		Single phase input / single phase output
AC Input	Wiring	(L/ N) +PE
	Voltage range	90~300VAC
	Frequency range	40Hz-70Hz
	Input power factor	≥0.99
AC Output	Wiring	(L/ N) +PE
	Rated voltage	208/220/230/240VAC
	Voltage Regulation	±1%
	Output frequency	50/60±4Hz (Sync mode) / 50/60Hz±0.1 (Free Run)
	Waveform	pure sine wave
	Distortion (THDV%)	<2% (linear load)
		<8% (nonlinear load)
	Overload capacity	10min@105%~125% rated load
		30sec@126%~150% rated load
		0.2sec@> 150% rated load
	Transfer time	Battery <-> Line Mode :0ms
Efficiency	AC/AC mode	93%
	DC/AC mode	92%

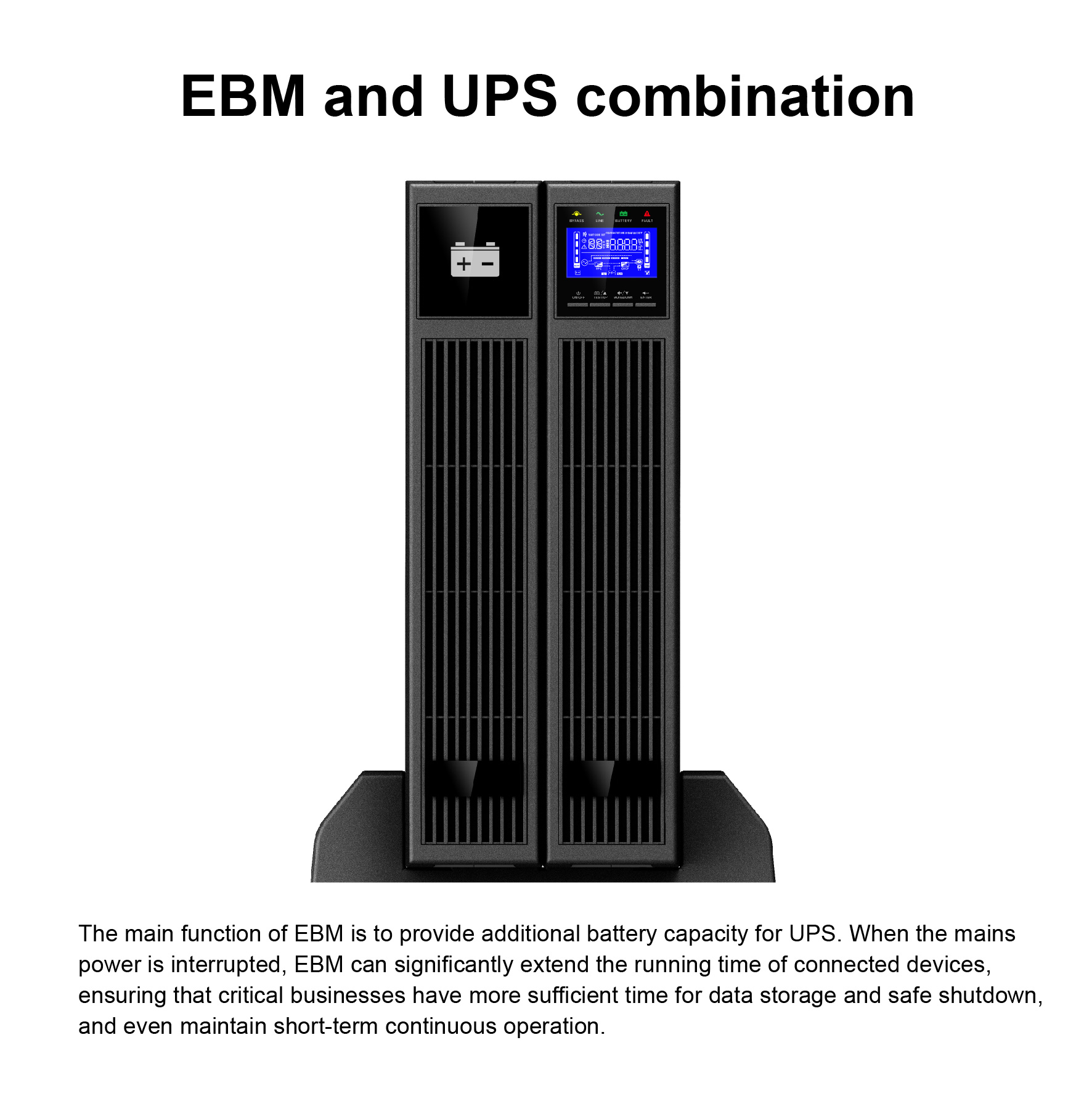

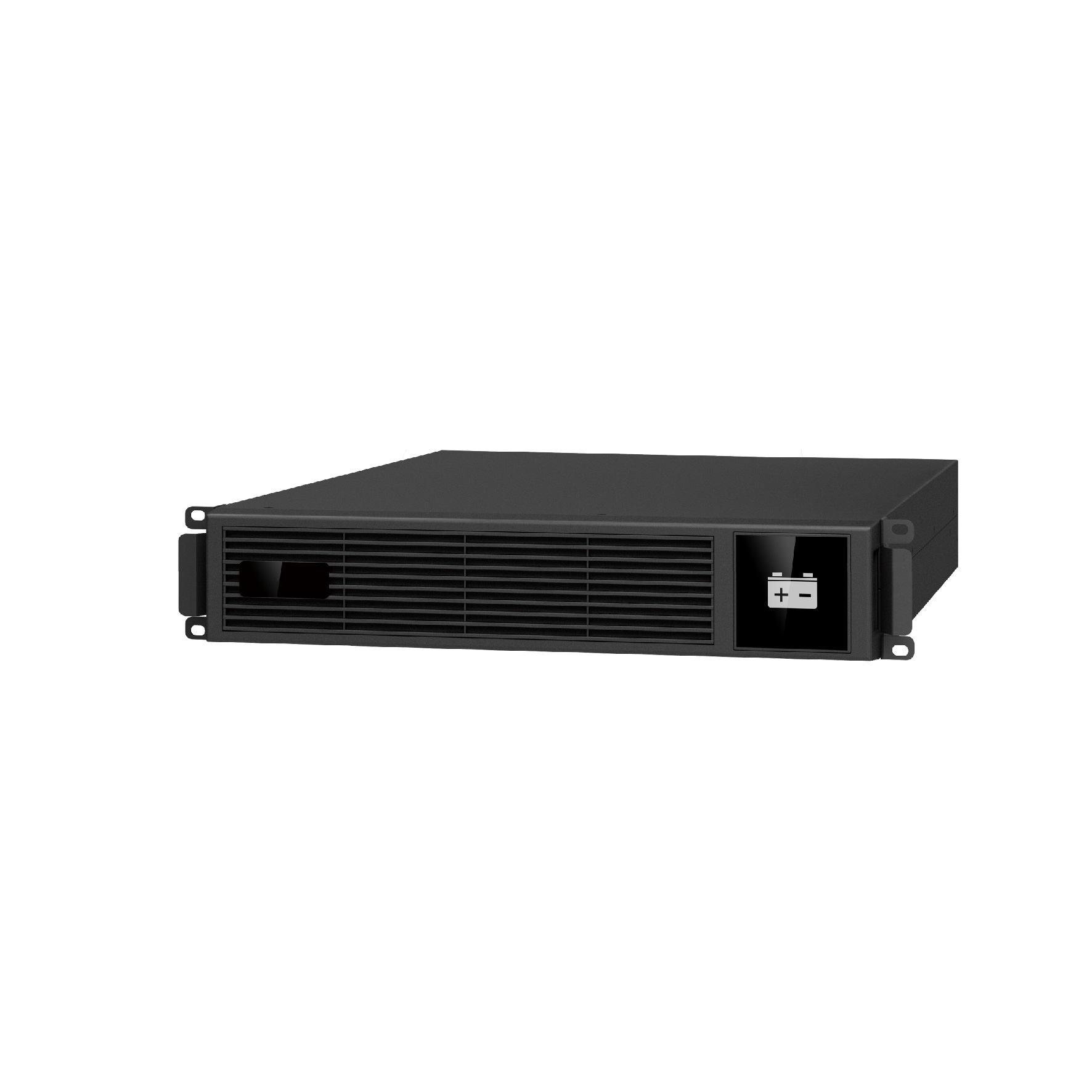

Battery Input	Rated Battery Voltage	192VDC or 240VDC External
	Battery capacity	External Battery Depends
	Backup time
	Charging current	4A

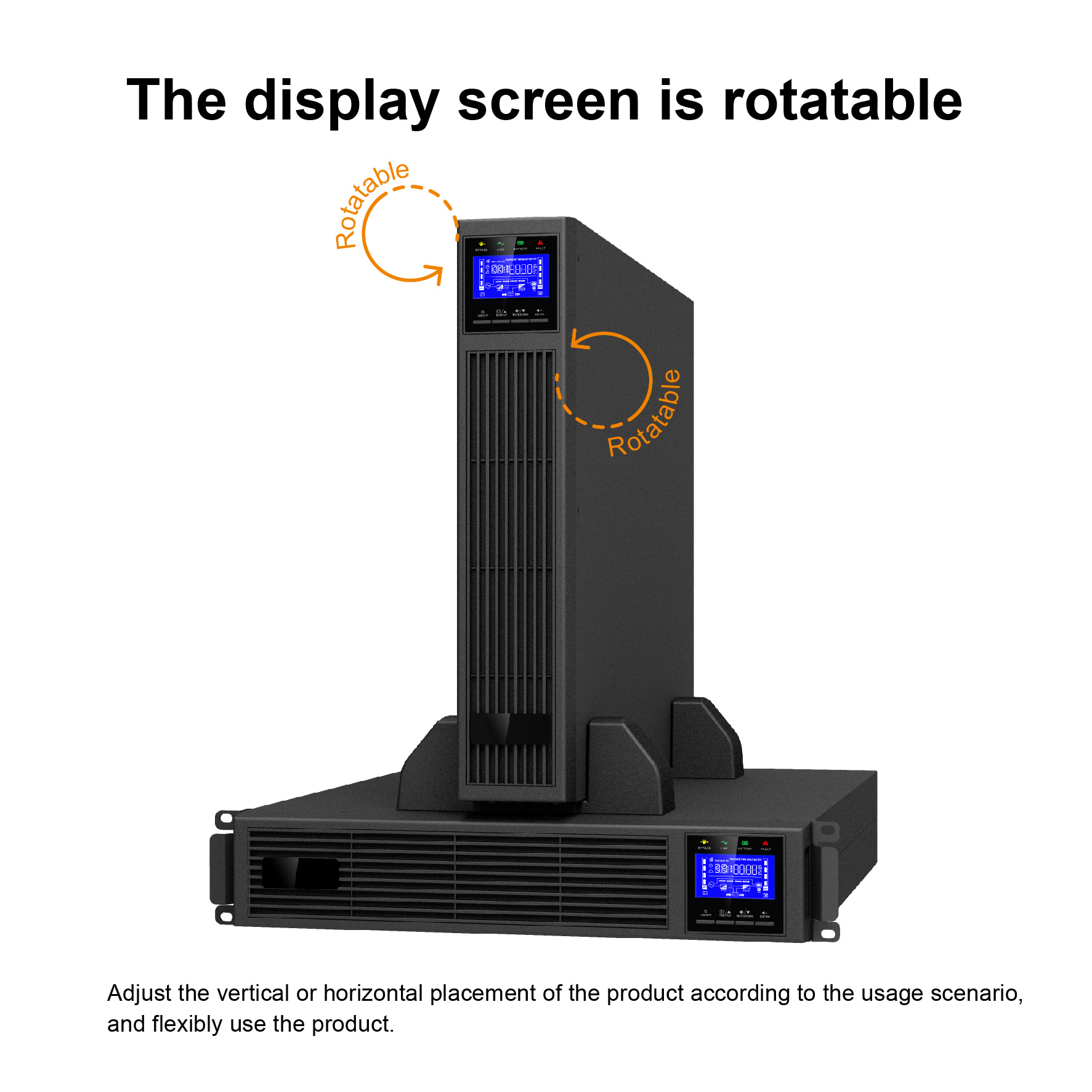

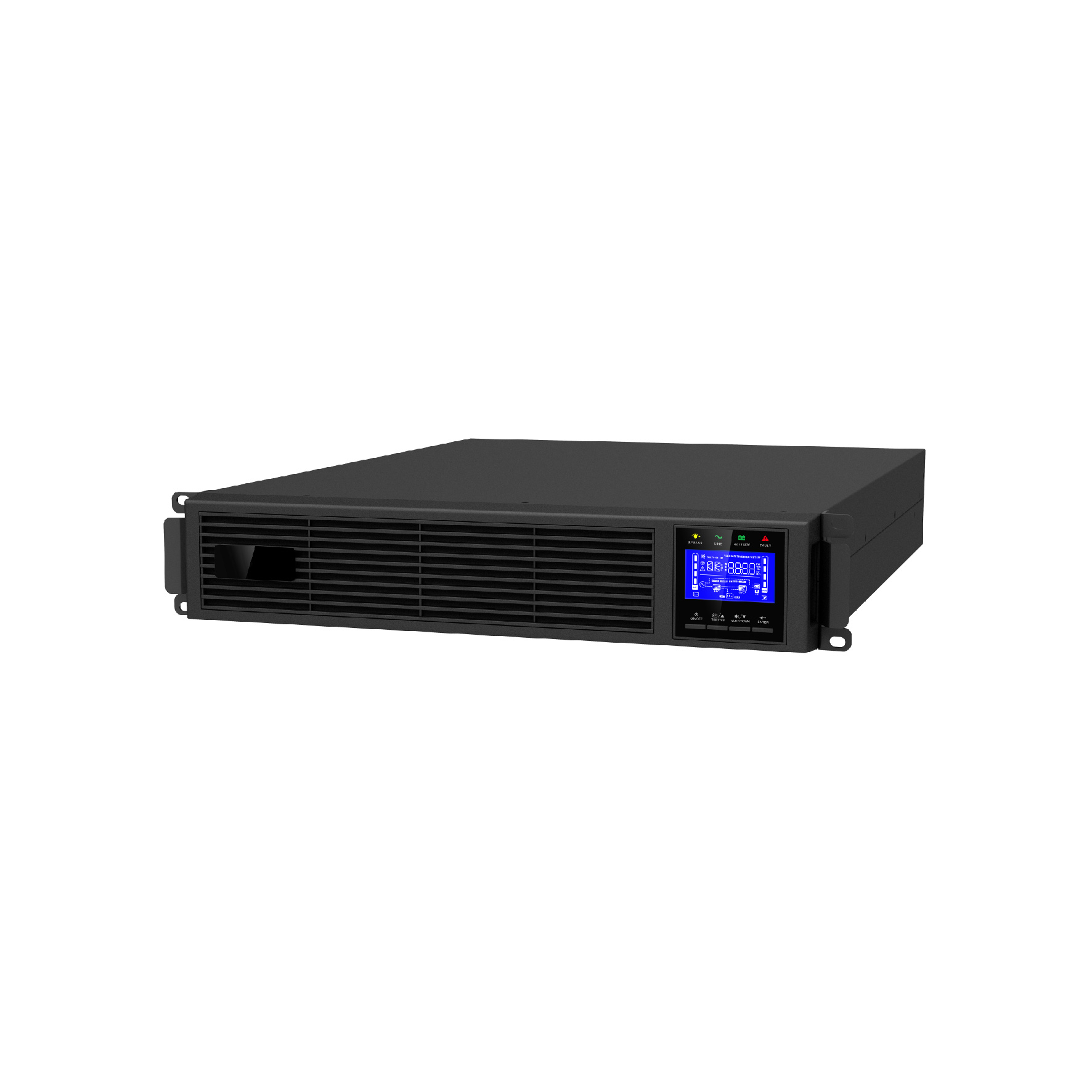

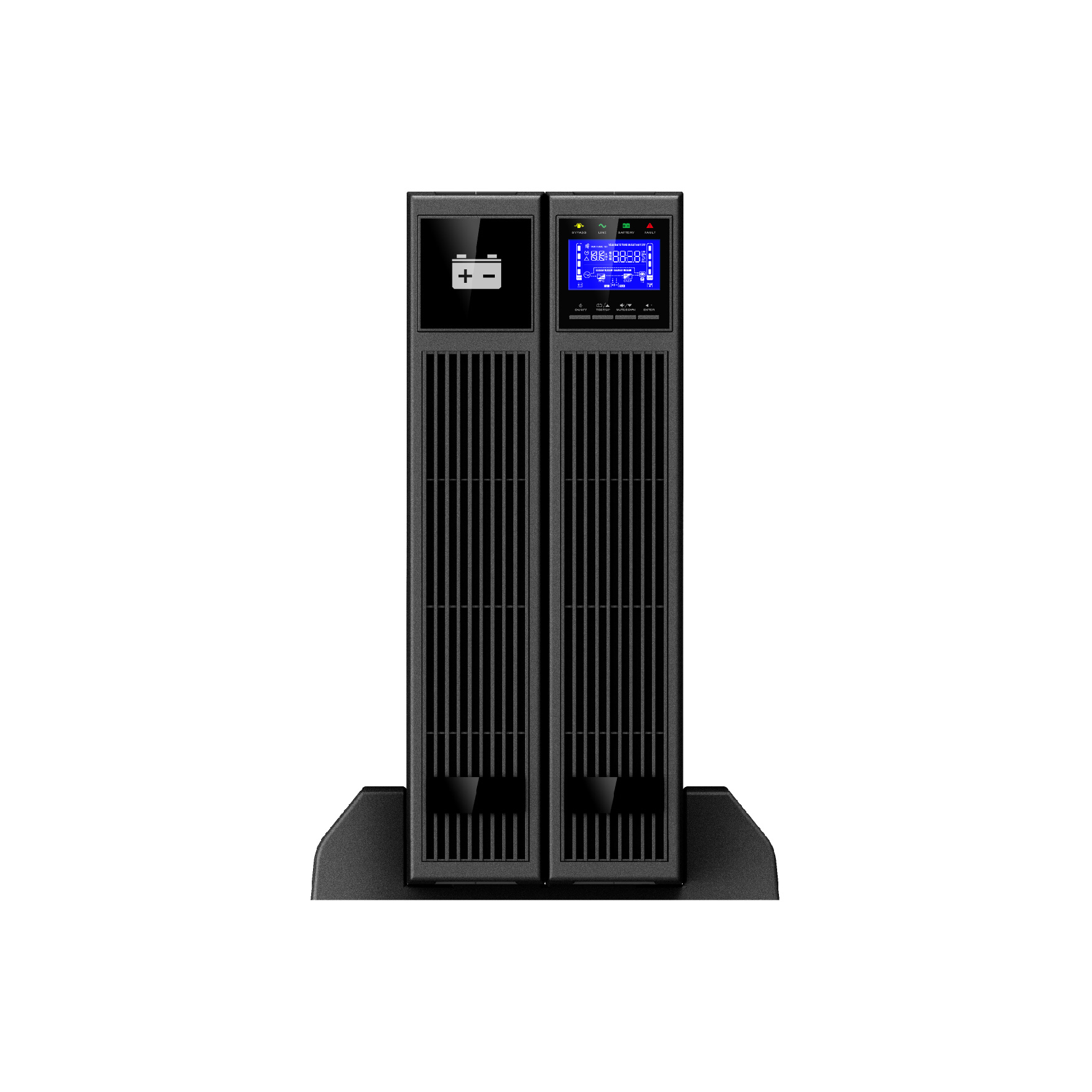

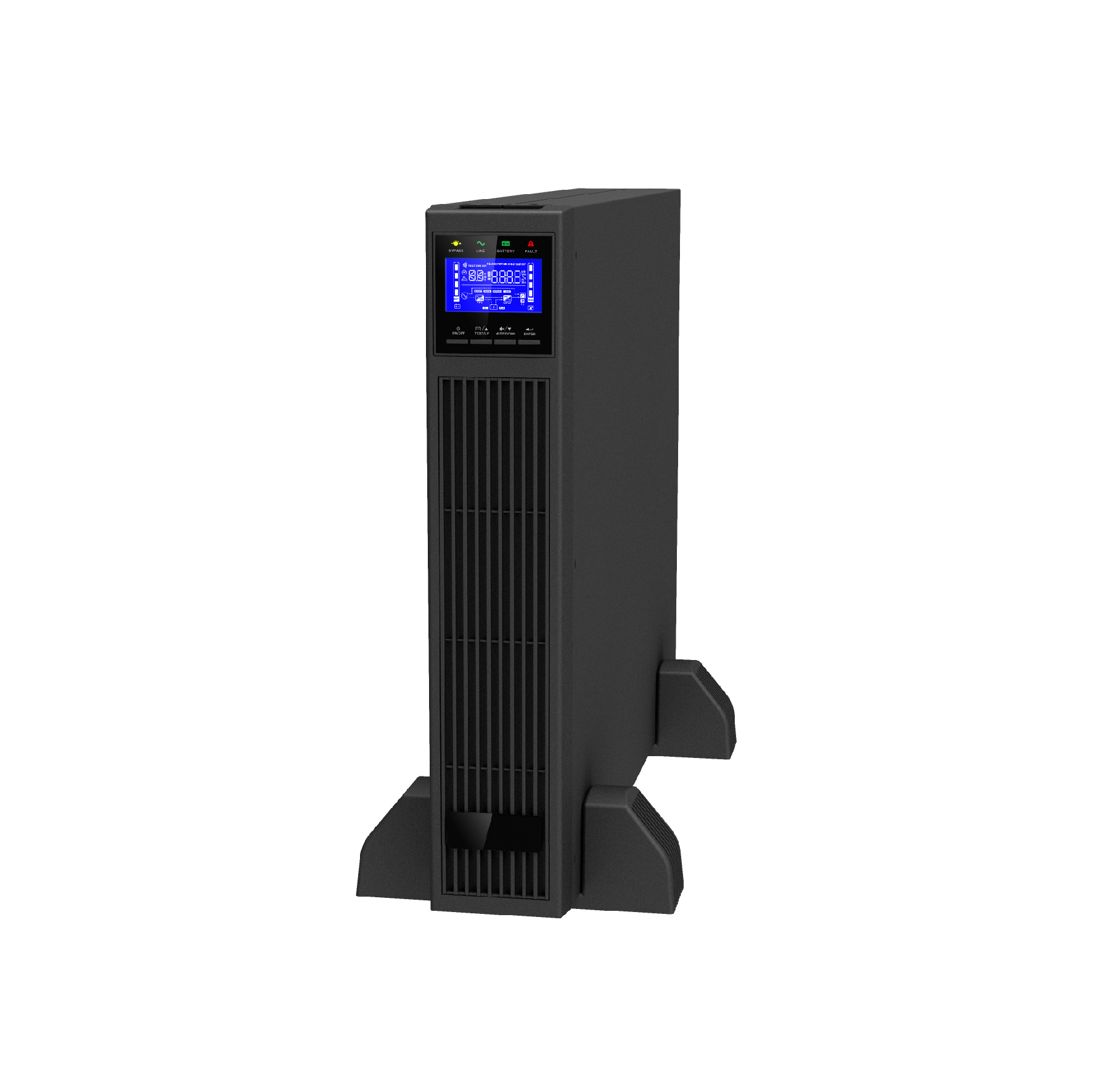

Chassis Style		Rack-Tower Transformable

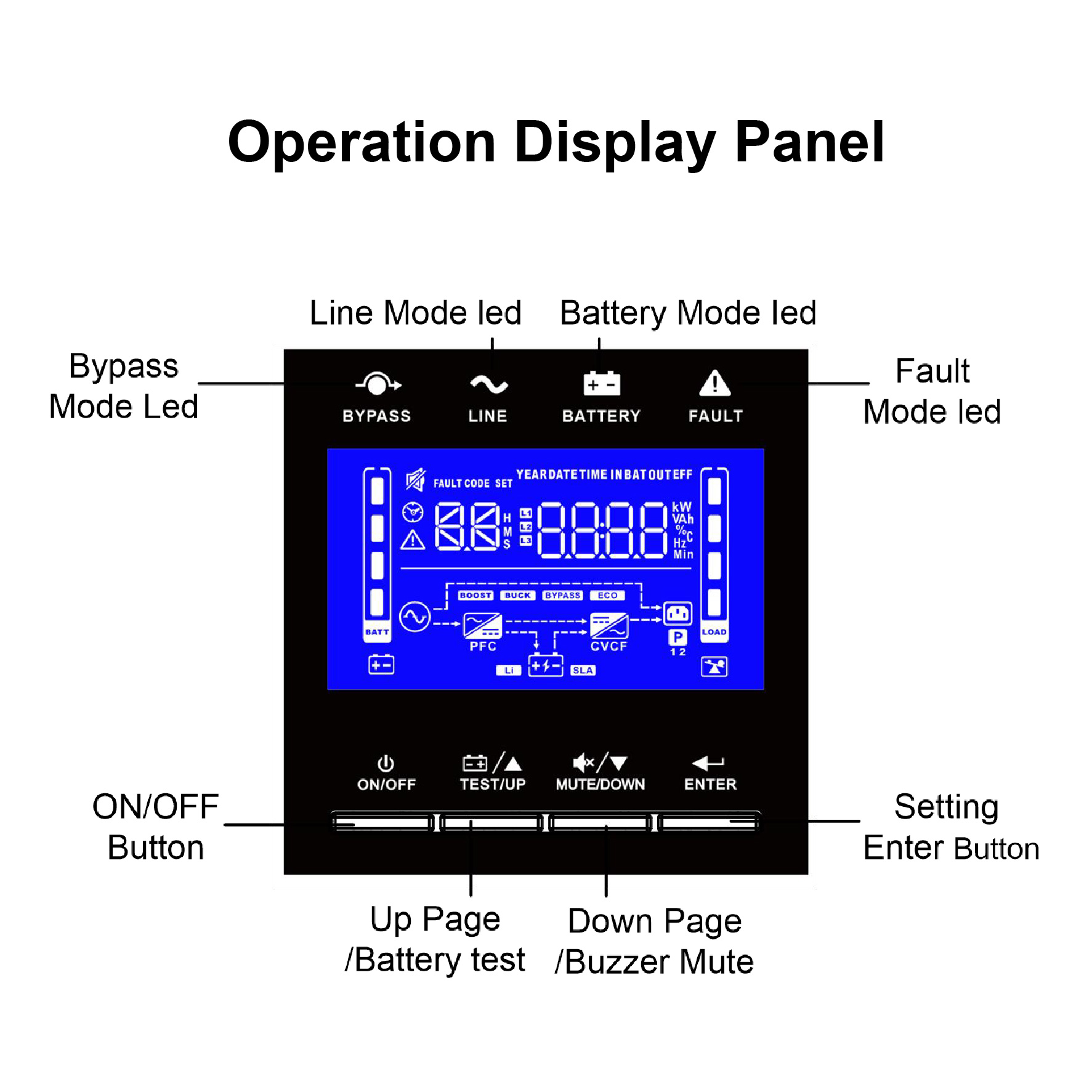

HMI	LCD Display screen	Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status
	Standards Communication Port	1.RS232 2.USB PORT 3.EPO/ROO 4.Intelligent card slot
	Optional extension card	SNMP Card / MODBUS Card / Relay Card
Acoustics noise		<55dB @1 meters
IP rating		IP20

ITEM	Normal range
Ambient temperature	-10^oC~ +40^oC
Environment humidity	0%~97%, no condensing
Altitude	No derating for lower than1000m: Over 1000m:1% derating forevery100m rise，Max. 3000M
Storage temperature	-15^oC~+45^oC
