MODEL

PX RV1K

PX RV2K

PX RV3K

Capacity

VA/W

1kVA/1kW

2kVA/2kW

3kVA/3kW

Topology

Double Conversion Online UPS

Phase

Single phase input / single phase output

AC Input

Wiring

(L/ N) +PE

Voltage range

 90~300VAC

Frequency range

40Hz-70Hz

Input power factor

≥0.99

AC Output

Wiring

(L/ N) +PE

Rated voltage

208/220/230/240VAC

Voltage Regulation

±1%

Output frequency

50/60±4Hz (Sync mode) / 50/60Hz±0.1% (Free Run)

Waveform

pure sine wave

Distortion (THDV%)

<2% (linear load)

<8% (nonlinear load)

Overload capacity

1min@105%~125% rated load

10sec@131%~150% rated load

0.2sec@> 150% rated load

Transfer time

Battery <-> Line  Mode :0ms

Efficiency

AC/AC mode

92%

93.5%

93.5%

DC/AC mode

90%

91.5%

91.5%

Battery

Input

Rated Battery Voltage

36VDC Internal

72VDC Internal

72VDC Internal

Battery capacity

12V/7AHx 3pcs

12V/7AHx 6pcs

12V/9AHx 6pcs

Backup time

＞10 min@Half Load

＞6 min@Half Load

＞6 min@Half Load

Charging current

 2A/4A On-site select

Battery charger time

Charger to 90% battery capacity in 5 hours(standard)

Chassis Style

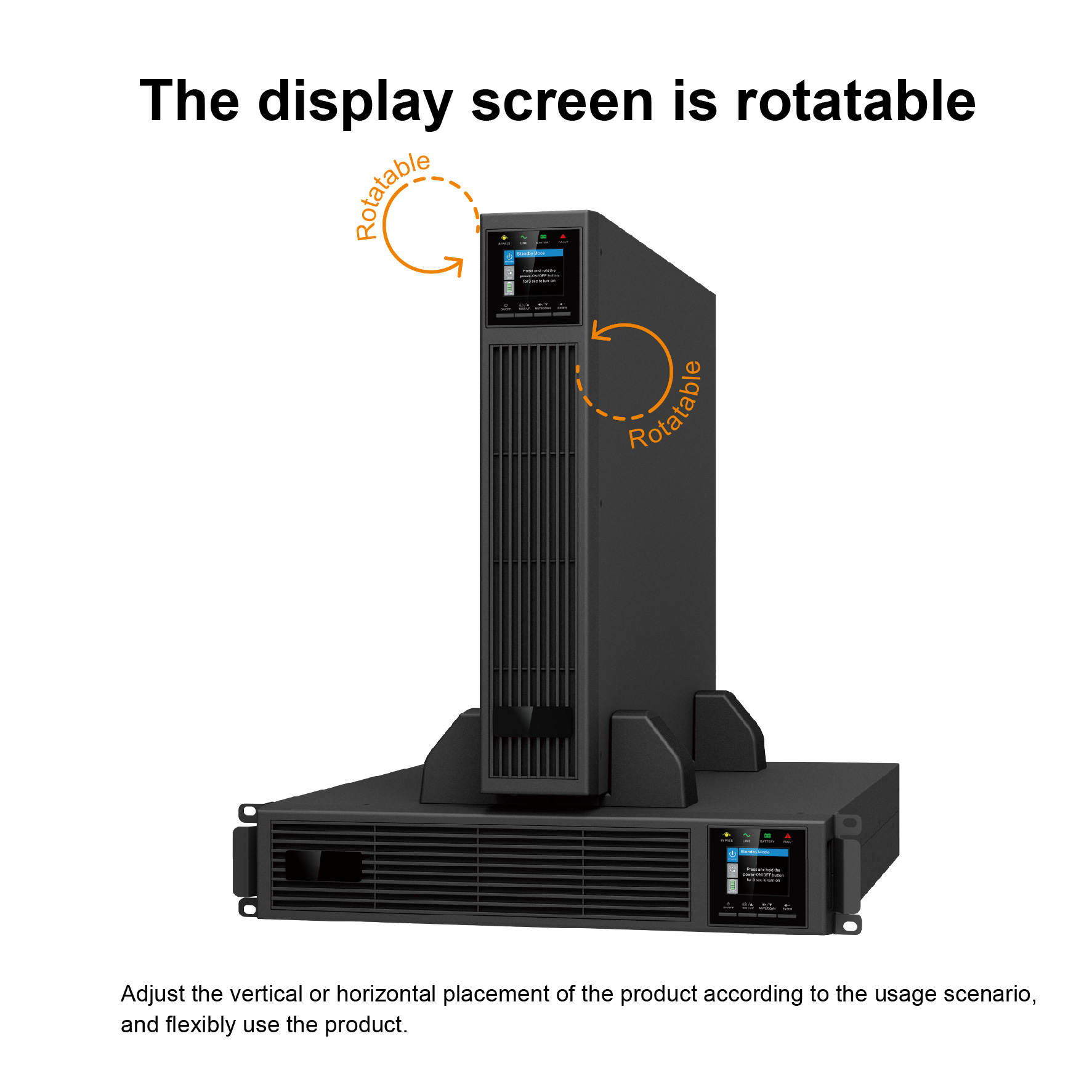

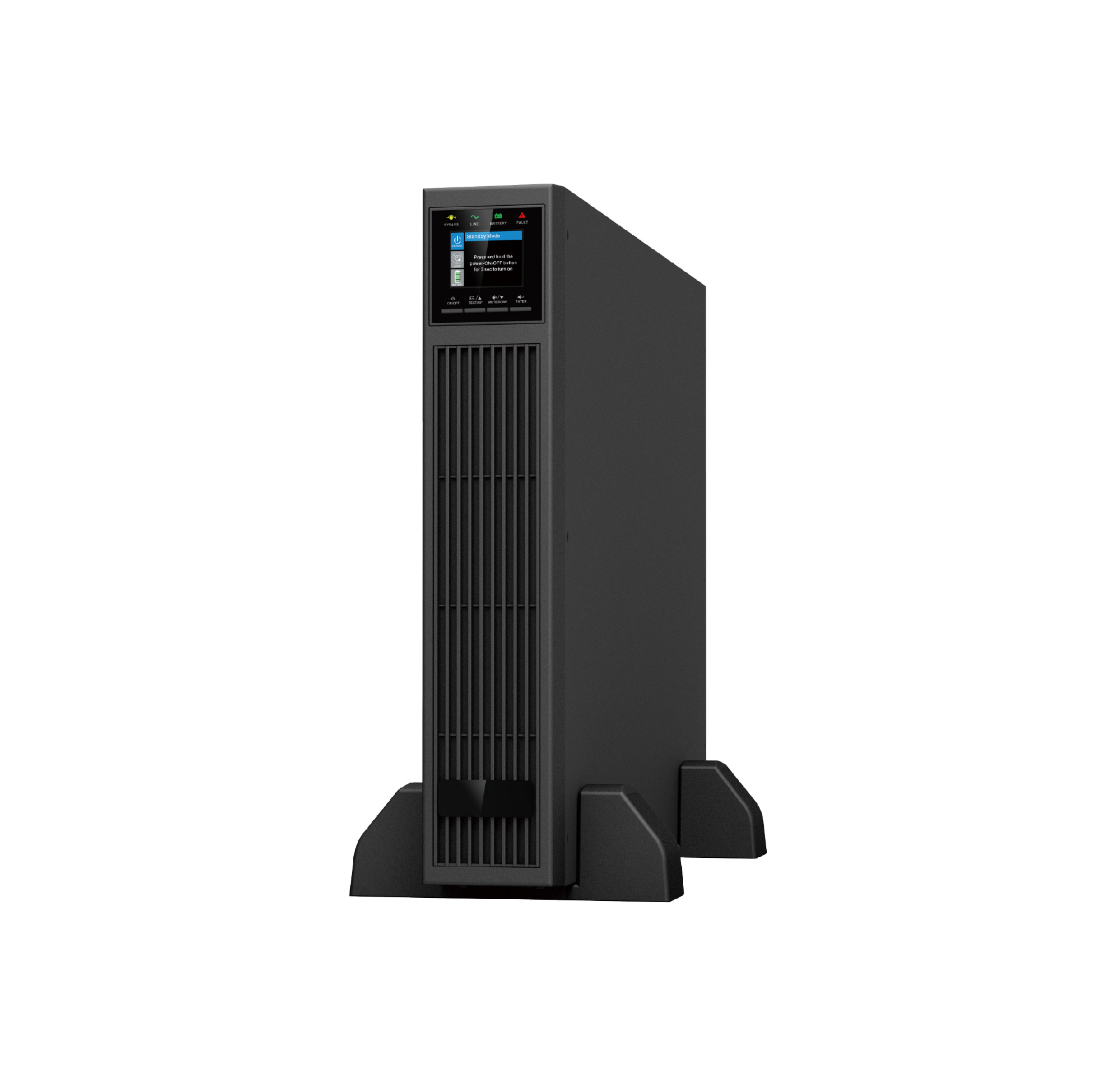

Rack-Tower Transformable

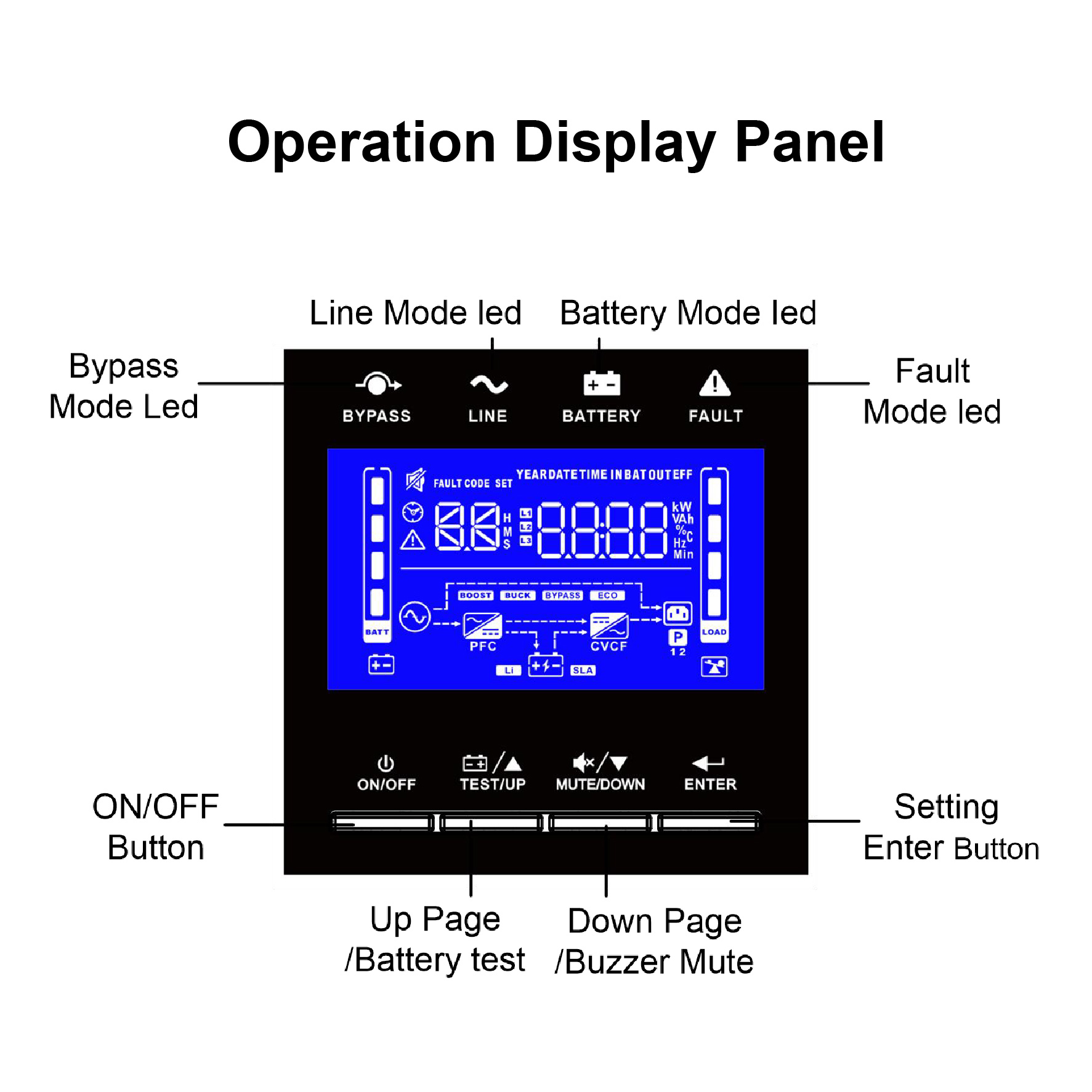

HMI

LCD Display screen

 Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status

Standards Communication Port

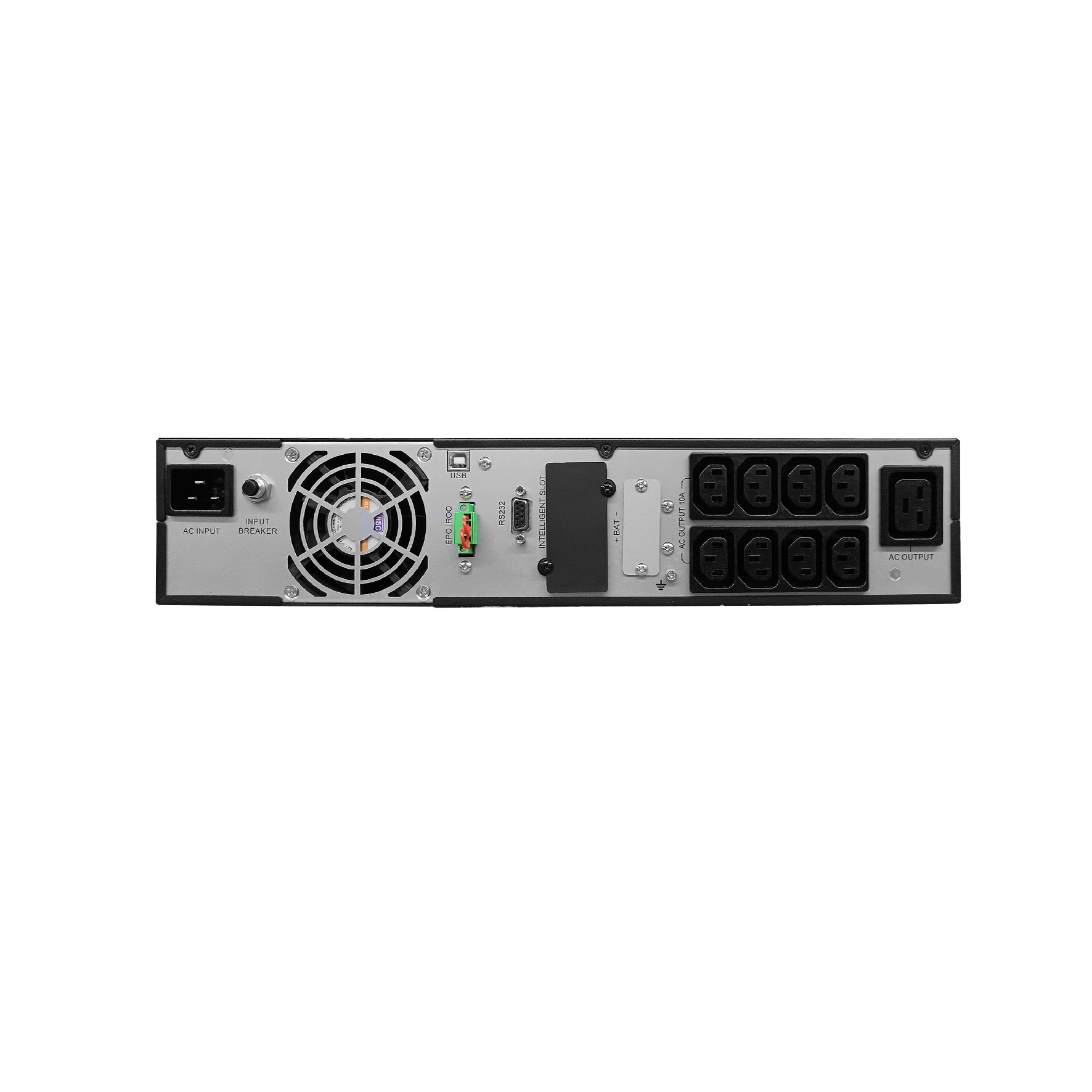

1.RS232  2.USB PORT  3.EPO/ROO  4.intelligent card slot

Optional extension card

SNMP Card / MODBUS Card / Relay Card

Acoustics noise

<55dB @1 meters

Model

W × H × L (mm)

Weight (kg)

Remark

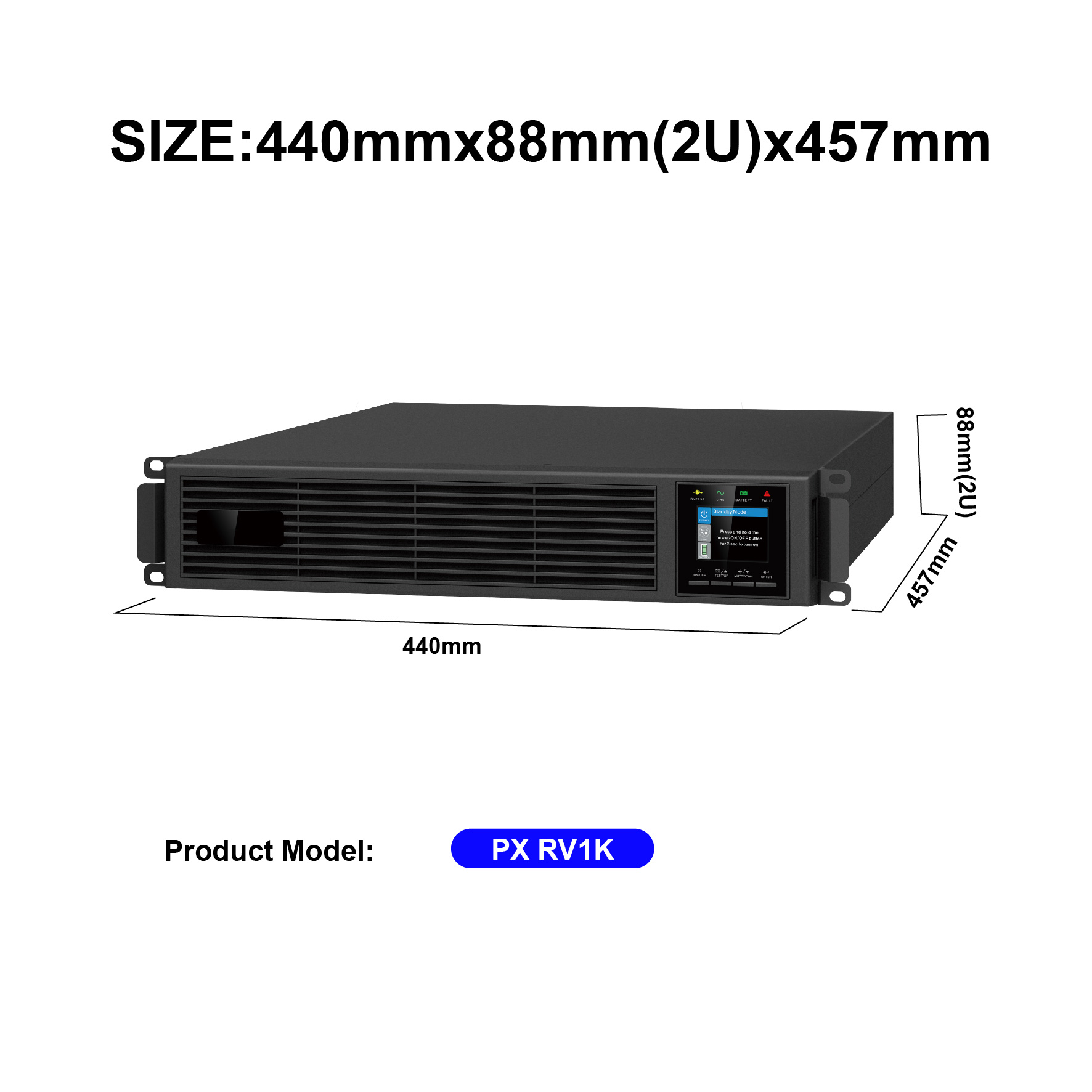

PX RV1K

440mm×88mm(2U)×457mm

15.8

Internal 3 x 7AH batteries

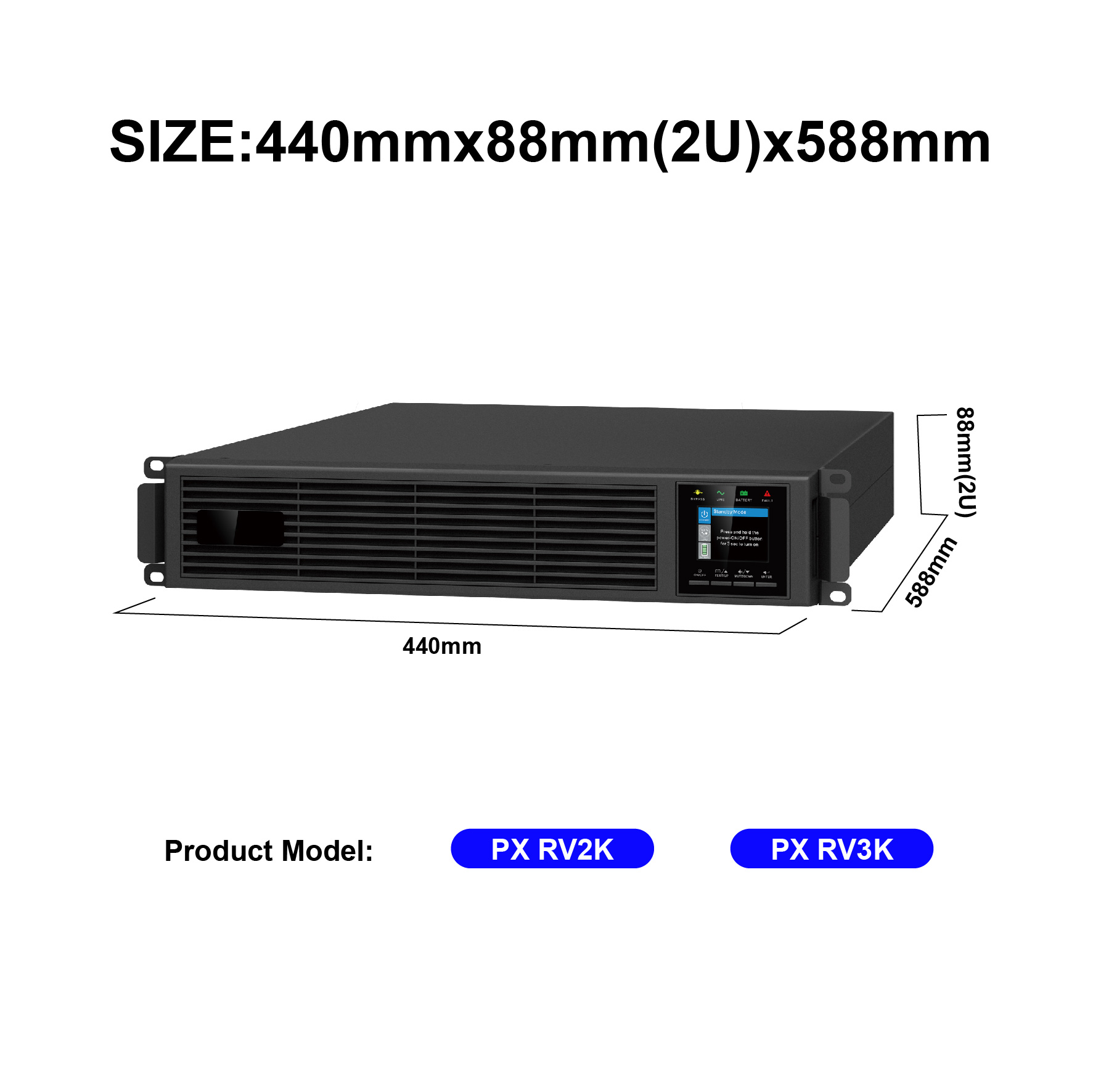

PX RV2K

440mm×88mm(2U)×588mm

25.3

Internal 6 x 7AH batteries

PX RV3K

440mm×88mm(2U)×588mm

28.8

Internal 6 x 9AH batteries

ITEM

Normal range

Ambient temperature

-10^oC~ +40^oC

Environment humidity

0%~97%, no condensing

Altitude

No derating for lower than1000m:

Over 1000m:1% derating forevery100m rise，Max. 3000M

Storage temperature

-15^oC~+45^oC

ITEM

Standard

Level

ESD

IEC61000-4-2

LEVEL4

RS

IEC61000-4-3

LEVEL3

EFT

IEC61000-4-4

LEVEL4

SURGE

IEC61000-4-5

LEVEL4

SAFETY

IEC62040-1
